Flexible fiber Bragg grating strain sensors can be applied to flat or arc-shaped surfaces and are suitable for strain measurement on structural surfaces. They can be used in structural strain monitoring and model tests in fields such as aerospace, rail transit, ships, Marine engineering, lifting equipment, Bridges, and wind power. Multiple optical fibers can be used in series on one optical fiber and installed on the structural surface by adhesive bonding.

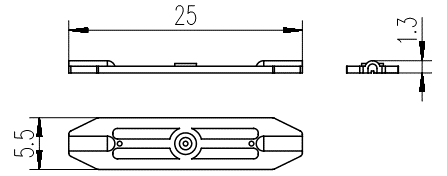

Sensor size
Application scope
It is suitable for surface strain measurement of structures and can be applied to structural strain monitoring and model tests in fields such as aerospace, rail transit, ships, Marine engineering, lifting equipment, Bridges, and wind power.
Introduction to Sensors
Flexible fiber Bragg grating strain sensors can be applied to flat or arc-shaped surfaces. Multiple sensors can be used in series on one fiber and installed on the structural surface by adhesive bonding.
Technical parameters
Project | Indicator |
Range | ±1000μ?、±1500μ?、±3000μ?、±5000μ?（Customizable） |
Accuracy | Better than ± (2+0.005*μ?) μ?, where μ? represents the strain range |
Resolution | Better than 0.5μ? |
Joint form | FC/APC、FC/FC、SC、ST（Customizable） |
Working temperature | -80℃~80℃、-40℃~200℃（Customizable） |
Weight | ＜1g |
Size | 25*5.5*1.3mm（Customizable） |
